Tempering

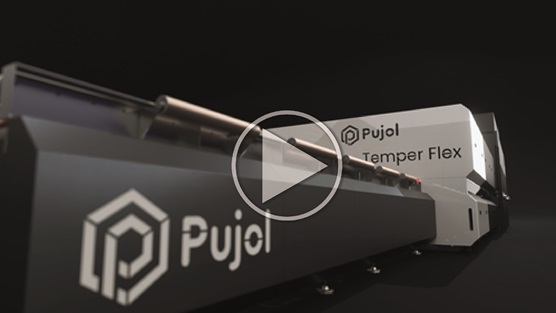

TEMPER FLEX, the first glass tempering oven in the market with high productivity and high installed power that is able to adapt and produce with low consumption and low installed power if the customer requires it. Manufactured with the latest technology and materials that make it a highly flexible production oven that allows the manufacture of tempered glass with excellent planimetry and without anisotropy at a low production cost and with low maintenance costs.

The main benefits of TEMPER FLEX are:

  • Glass with minimum optical distortion.
  • Glass with excellent planimetry.
  • Exclusive engineering applied to the rollers and to the insulation.
  • Useful life greater than 12 years in heating equipment.
  • 5-year guarantee offered by PUJOL on the heating equipment.
  • High thermal efficiency through the K-Panel system.
  • Low power consumption.
  • Low maintenance costs.
  • Convection system for low-emissivity glasses.
  • Tempered by sectioned ventilation.
  • Supervision and control system on a large screen of 55”.
  • Ready for industry 4.0 with the Pujol e-Connect system.​
      Thickness 4-19
Model Maximum
dimensions		 Minimum
dimensions		 Required Power
ECO (KW)		 Required Power
PRO (KW)		 Installed
Power
32x16* 3200x1600 32x16* 350 530 650
36x16 3600x1600 36x16 400 600 700
36x21 3600x2100 36x21 430 680 820
42x23* 4200x2300 42x23* 450 700 970
45x25 4500x2500 45x25 510 730 1130
50x25* 5000x2500 50x25* 650 1050 1250
64x25 6400x2500 64x25 900 1400 1670
64x32* 6400x3200 64x32* 1000 1650 1800
      Thickness 3-19
Model Maximum
dimensions		 Minimum
dimensions		 Required Power
ECO (KW)		 Required Power
PRO (KW)		 Installed
Power
32x16* 3200x1600 32x16* 475 835 935
36x16 3600x1600 36x16 520 930 1100
36x21 3600x2100 36x21 620 1030 1230
42x23* 4200x2300 42x23* 700 1160 1450
45x25 4500x2500 45x25 750 1280 1550
50x25* 5000x2500 50x25* 960 1520 1695
64x25 6400x2500 64x25 1070 1780 1900
64x32* 6400x3200 64x32* 1200 1800 2100

*Modelos NO ESTANDAR - fabricación especial
