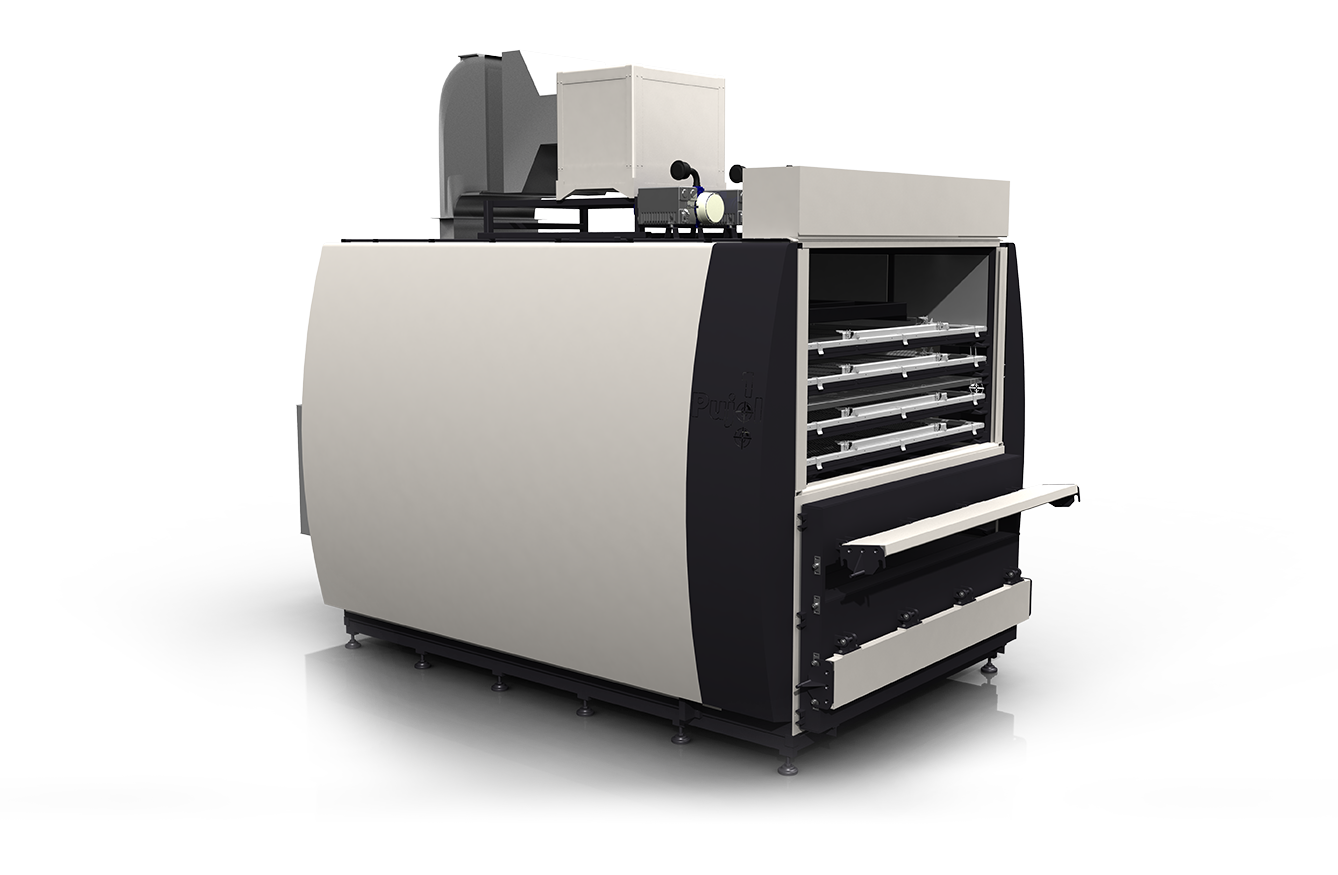

Laminating Oven
Pujol 100
PVB+
PUJOL 100 PVB + was developed and designed to facilitate work with PVB interlayers without the need for a climate controlled room, additional fixed operating costs, expensive calendering processes, or inefficient heating/air conditioning systems for humidity and temperature control.
The main advantages of the Pujol 100 PVB + system are:
-
Lamination of PVB/EVA/ionoplast interlayers (SGP).
-
Humidity and temperature control is not required for either storage or treatment.
-
It does not require a pre-laminate line, so a pre-oven or calender system is not necessary.
-
It does not require a high energy-consuming compressor.
-
There is no risk of explosion, something that could occur when using an autoclave.
-
Cost reduction owing to greater energy efficiency, up to 70% when compared to traditional autoclave systems.
-
Fixed energy costs independent of production volume.
-
Up to 40 mm thickness in a single piece or in several independent compositions on a full tray and up to 60mm in smaller sheets of glass.
-
A system that ensures high temperature uniformity using plates that radiate heat above and below the glass surface.
-
Requires less plant space.
-
Optimises process cycle time. While half is being processed in the oven, the other half is unloaded and the next cycle is loaded.
-
High production volumes with minimal personnel.
|
|
|
Exterior measurements |
Tray |
|
Heating output |
|||
|
|
|
Width |
Length |
Height |
|
|||
|
Type |
Model |
A |
B |
C |
a |
b |
Glass |
kw |
|
Pujol 100 PVB+ |
40x24-2C |
3450 |
5800 |
3750 |
2400 |
4000 |
3.6x2.1 |
77 |
|
Pujol 100 PVB+ |
40x28-2C |
3850 |
5800 |
3750 |
2800 |
4000 |
3.6x2.5 |
80 |
|
Pujol 100 PVB+ |
50X28-2C |
3850 |
6800 |
3750 |
2800 |
5000 |
4.5x2.5 |
115 |
|
Pujol 100 PVB+ |
64X32-2C |
4400 |
8200 |
4300 |
3200 |
6400 |
6.0x2.9 |
182 |
With
Pujol e-Connect System
Our ovens include the
Pujol e-Connect System
